Power Back

Overview

Temporary Power Restoration Device
Auto Transformer restores a missing hot leg (or neutral) in either 120/240V or 120/208V 3-wire services.

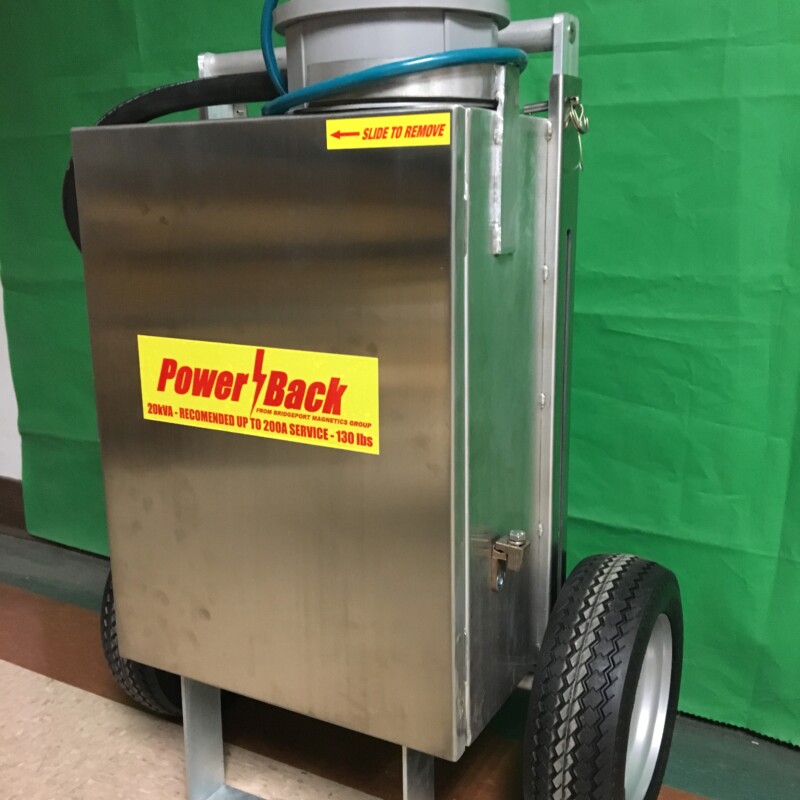

15kva and 20kva PowerBacks now shipping in Stainless Steel NEMA4 enclosures with on-board Voltage Indicators for both 120v legs

Why Utility Companies use the PowerBack

  • Ultra-compact Power Restoration Device.
  • Provides same day temporary power restoration.
  • Saves time and money. Now you can quickly restore power and schedule permanent repairs at a later date instead of having to make repairs immediately.
  • Designed for both overhead 120/240V and underground 120/240V 3-Wire systems.
  • Stainless Steel Wheeled-Cart is Easy to Move. One person can transport the PowerBack to the job site. No crew or special truck is needed to transport the PowerBack.
  • Lightweight – Just half the weight of competitor products (see weights below)
  • No need to bridge or run shunts for residential customers who have lost one phase or the neutral to their home.
  • Improves public safety by avoiding the need to run temporary cables between customers when a phase is lost.
  • Increases customer satisfaction with faster service restoration.
  • Thermal Protected High Efficiency Toroidal Transformer- Located near the primary windings of the transformer is a 105C thermal protector switch wired directly to the Shunt-Trip solenoid in the Circuit breaker. Should the transformer over-heat due to overload or short-circuit, the circuit breaker will trip and shut the unit down.

How it works

The PowerBack provides a quick, convenient source of 240 volt power up to *20,000 VA from one phase and a good neutral or 120v service from two good phases (restoring neutral).

The PowerBack Restores Power to both homes and businesses.

Models:

PB15K-M 125A Breaker – Supports 150A Service – 115lbs

PB20K-M 160A Breaker – Supports 200A Service – 135lbs

PB30K-M 250A Breaker – Supports 320A Service – 220lbs

PB50K 400A Breaker – Supports 400A Service – 290lbs

PowerBack 30 kVA 320A ServicePowerBack 30 kVA 320A Service

PB30K-M is the only auto transformer spec’d to support 320A homes.

30Kva High Efficiency Toroidal Autotransformer
• 10ft service cable (4/2AWG) w/ Heavy Duty 2-part CL320A Metering Adapter for Lever By-Pass Metering sockets
• 250A Circuit Breaker—125A Rating Continuous Load per Hot Leg
• Thermal Protection (105C) protects transformer against excessive overload
• NEMA 4 All-Weather STEEL enclosure w/ lockable door and welded lifting eye
• 13” x 3.5” Foam-Filled Flat Free tires, roller bearing hubs , stainless steel axle
• Quick reference Installation instructions inside of front door
• 3yr Warrantee (1yr Warrantee on Metering Adapter)

SHOWN ON LEFT, COMPARED TO THE 20KVA – WITHOUT CABLE EXTENSION KIT AND STORAGE BIN

PowerBack 50 kVA Multi HomePowerBack 50 kVA Multi Home



















SHOWN WITH CABLE EXTENSION KIT AND STORAGE BIN INSTALLED

PB50K PowerBack – Multi Home / Pad Transformer Support 400A Breaker – 3 Flying Lead Connections

Optional Qwick-Lok Disconnect Lead Extensions with Loop Connections in a Flood Seal Boot

• 50Kva High Efficiency Toroidal Autotransformer – 400A Breaker
• 2x 120V Hot Leads = 1AWG x 10ft Long
• 1 Neutral Lead = 3/0AWG x 10ft long
• Optional – 5ft. Long Quick-Lock disconnects w/ 1 hole Flood-Seal Connectors
• Thermal Sensor (105C) protects transformer against excessive overload
• NEMA 4 All-Weather enclosure w/ lockable door system, and welded lifting eye
• 13” x 3.5” Foam-Filled Flat Free tires, roller bearing hubs , stainless steel axle
• Quick reference Installation instructions inside of front door
• 3yr Warrantee
